IUHO – TYP 243827.0
| Priemer | 3 | 4 | 6 | ||||
|---|---|---|---|---|---|---|---|
| SUPERIOR | SUPERIOR | SUPERIOR | |||||
| kg | kg | kg | |||||
| 100 | M2 | 103120 | 2,45 | 104120 | 2,55 | — | — |
| 125 | M2 | 123120 | 4,32 | 124120 | 4,44 | 126120 | 4,60 |
| 160 | M2 | 163120 | 6,25 | 164120 | 6,78 | 166120 | 7,25 |
| 200 | M2 | 203120 | 14,32 | 204120 | 14,65 | 206120 | 15,34 |
| 250 | M2 | 253120 | 21,62 | 254120 | 21,75 | 256120 | 21,95 |
| 310 | M2 | 313120 | 39,98 | 314120 | 40,25 | 316120 | 40,42 |
| 400 | M2 | 403120 | 74,15 | 404120 | 74,22 | 406120 | 74,32 |
| 500 | M2 | 503120 | 128,25 | 504120 | 128,32 | 506120 | 128,15 |

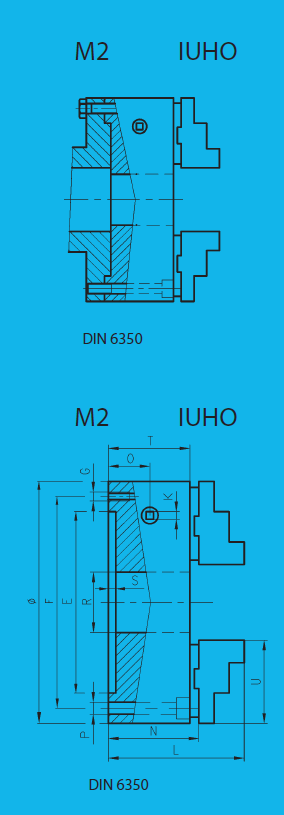

| Priemer | E H6 | F±0,2 | G | K | O | P1) | P2) | S | T | R | U |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 70 | 83 | 3×M8 | 8 | 18 ,0 | — | 3×9 | 3 | 52 | 20 | 46 |
| 125 | 95 | 108 | 3×M8 | 8 | 22 ,0 | 4×9 | 3×9 | 4 | 58 | 32 | 56 |
| 160 | 125 | 140 | 3×M10 | 9 | 22,0 | 4×11 | 3×11 | 4 | 62 | 42 | 67 |
| 200 | 160 | 176 | 3×M10 | 11 | 27,5 | 4×11 | 3×11 | 4 | 76 | 55 | 76 |
| 250 | 200 | 224 | 3×M12 | 12 | 29,5 | 4×13 | 3×13 | 5 | 82 | 76 | 91 |
| 310 | 260 | 286 | 3×M16 | 14 | 35 ,0 | 4×13 | 3×13 | 5 | 100 | 103 | 108 |
| 400 | 330 | 362 | 3×M16 | 17 | 39 ,0 | 4×17 | 3×17 | 7 | 110 | 136 | 122 |
| 500 | 420 | 458 | 6×M16 | 17 | 43 ,0 | 8×17 | 6×17 | 8 | 120 | 190 | 133 |
1) pre 4 čeľustné prevedenie M2
2) pre 3 a 6 čeľustné prevedenie M2
