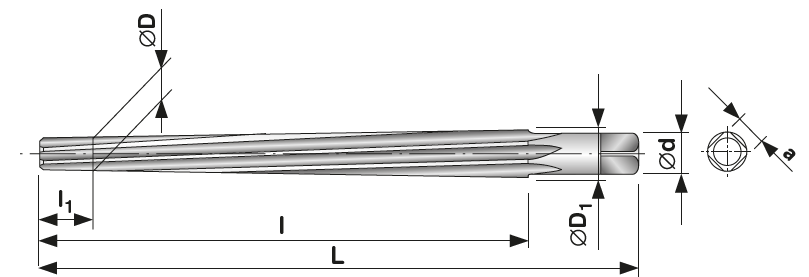

| ∅ D mm |
L mm |
I1 mm |
I mm |
∅ d mm |
a mm |
(∅ D1) mm |
 |
| 3 | 80 | 5 | 58 | 4,0 | 3,15 | 4,06 | 4 |
| 4 | 93 | 5 | 68 | 5,0 | 4,00 | 5,26 | 4 |
| 5 | 100 | 5 | 73 | 6,3 | 5,00 | 6,36 | 5 |
| 6 | 135 | 5 | 105 | 8,0 | 6,30 | 8,00 | 6 |
| 8 | 180 | 5 | 145 | 10,0 | 8,00 | 10,80 | 6 |
| 10 | 215 | 5 | 175 | 12,5 | 10,00 | 13,40 | 6 |
| 12 | 255 | 10 | 210 | 14,0 | 11,20 | 16,00 | 8 |
| 14 | 255 | 10 | 210 | 14,0 | 11,20 | 18,00 | 8 |
| 16 | 280 | 10 | 230 | 18,0 | 14,00 | 20,40 | 8 |
| 20 | 310 | 10 | 250 | 22,4 | 18,00 | 24,80 | 8 |
| 25 | 370 | 15 | 300 | 28,0 | 22,40 | 30,70 | 10 |
| 30 | 400 | 15 | 320 | 31,5 | 25,00 | 36,10 | 10 |
| 32 | 400 | 15 | 320 | 31,5 | 25,00 | 38,10 | 10 |
| 40 | 430 | 15 | 340 | 40,0 | 31,50 | 46,50 | 12 |
| 50 | 460 | 15 | 360 | 50,0 | 40,00 | 56,90 | 12 |
