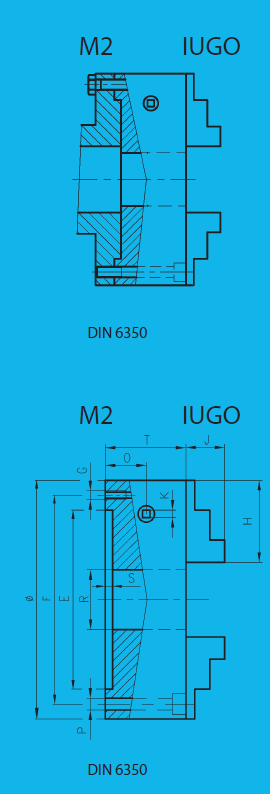

IUGO – TYP 243829.0
| Priemer | 3 | 4 | 6 | ||||
| SUPERIOR | SUPERIOR | SUPERIOR | |||||
| kg | kg | kg | |||||
| 80 | M2 | 083120 | 1,35 | 084120 | 1,40 | — | — |
| 100 | M2 | 103120 | 2,40 | 104120 | 2,50 | — | — |
| 125 | M2 | 123120 | 4,30 | 124120 | 4,40 | 126120 | 4,60 |
| 160 | M2 | 163120 | 7,25 | 164120 | 7,40 | 166120 | 7,65 |
| 200 | M2 | 203120 | 14,75 | 204120 | 14,85 | 206120 | 15,45 |
| 250 | M2 | 253120 | 23,65 | 254120 | 24,05 | 256120 | 25,15 |
| 310 | M2 | 313120 | 41,10 | 314120 | 43,95 | 316120 | 45,90 |
| 400 | M2 | 403120 | 79,10 | 404120 | 80,65 | 406120 | 82,95 |
| 500 | M2 | 503120 | 136,85 | 504120 | 138,90 | 506120 | 141,85 |
| Priemer | E H6 | F±0,2 | G | H | J | K | O | P1) | P2) | S | T | R |
| 80 | 56 | 67 | 3× M6 | 35,5 | 13 | 6 | 16,5 | — | 3× 7 | 3 | 45 | 15 |
| 100 | 70 | 83 | 3× M8 | 41,5 | 17 | 8 | 18,0 | — | 3× 9 | 3 | 52 | 20 |
| 125 | 95 | 108 | 3× M8 | 51,5 | 19 | 8 | 22,0 | 4× 9 | 3× 9 | 4 | 58 | 32 |
| 160 | 125 | 140 | 3×M10 | 66,0 | 23 | 9 | 22,0 | 4×11 | 3×11 | 4 | 62 | 42 |
| 200 | 160 | 176 | 3×M10 | 74,0 | 29 | 11 | 27,5 | 4×11 | 3×11 | 4 | 76 | 55 |
| 250 | 200 | 224 | 3×M12 | 97,5 | 33 | 12 | 29,5 | 4×13 | 3×13 | 5 | 82 | 76 |
| 310 | 260 | 286 | 3×M16 | 123,0 | 40 | 14 | 35,0 | 4×13 | 3×13 | 5 | 100 | 103 |
| 400 | 330 | 362 | 3×M16 | 152,5 | 50 | 17 | 39,0 | 4×17 | 3×17 | 7 | 110 | 136 |
| 500 | 420 | 458 | 6×M16 | 188,5 | 54 | 17 | 43,0 | 8×17 | 3×17 | 8 | 120 | 190 |
1) pre 4 čeľustné prevedenie M2
2) pre 3 a 6 čeľustné prevedenie M2
