IUD – TYP 243805.0
IUM – TYP 243806.0
| Priemer | 2 | 3 | 4 | ||||
| TYP 243805.0 | TYP 243806.0 | TYP 243806.0 | |||||
| kg | kg | kg | |||||
| 100 | M1 | 102310 | 2,62 | 103310 | 2,80 | 104310 | 2,84 |
| 125 | M1 | 122310 | 4,52 | 123310 | 4,60 | 124310 | 4,70 |
| 160 | M1 | 162310 | 7,40 | 163310 | 7,60 | 164310 | 7,80 |
| 200 | M1 | 202310 | 14,80 | 203310 | 15,00 | 204310 | 15,40 |
| 250 | M1 | 252310 | 23,00 | 253310 | 24,20 | 254310 | 25,50 |
| 315 | M1 | 312310 | 45,50 | 313310 | 45,60 | 314310 | 46,50 |
| 400 | M1 | 402310 | 78,00 | 403310 | 78,50 | 404310 | 80,00 |
| 500 | M2 | 502320 | 124,00 | 503320 | 131,00 | 504320 | 133,50 |

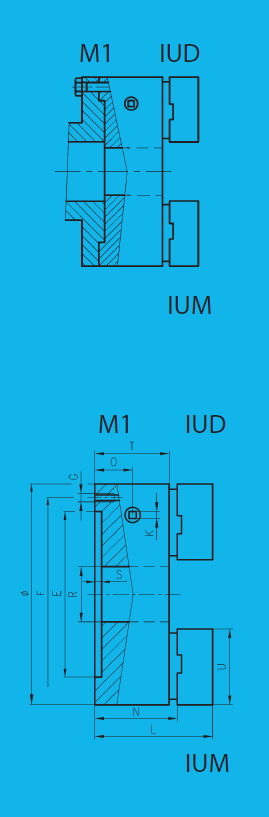

| Priemer | E H6 | F±0,2 | G | K | L1) | L2) | N | O | S | T | R | U |
| 100 | 80 | 90 | 3×M6 | 8 | 79,3 | 74,3 | 57,3 | 18,0 | 3 | 52 | 23 | 50 |
| 125 | 100 | 110 | 3×M8 | 8 | 94,3 | 89,3 | 62,3 | 22,0 | 4 | 58 | 28 | 60 |
| 160 | 130 | 143 | 3×M8 | 9 | 108,0 | 99,0 | 66,0 | 22,0 | 4 | 62 | 48 | 75 |
| 200 | 162 | 180 | 3×M10 | 11 | 117,0 | 117,0 | 80,0 | 27,5 | 5 | 76 | 52 | 95 |
| 250 | 210 | 226 | 3×M10 | 12 | 133,0 | 123,0 | 86,0 | 29,5 | 5 | 82 | 78 | 120 |
| 315 | 265 | 290 | 4×M12 | 14 | 166,0 | 153,0 | 105,0 | 35,0 | 6 | 100 | 108 | 140 |
| 400 | 350 | 375 | 6×M12 | 17 | 186,0 | 181,0 | 115,0 | 39,0 | 7 | 110 | 144 | 165 |
| 500 | 420 | 458 | 6×M16 | 17 | 205,0 | 205,0 | 125,0 | 43,0 | 8 | 120 | 190 | 205 |
1) pre 2 čeľustné prevedenie
2) pre 3 a 4 čeľustné prevedenie
