HSS

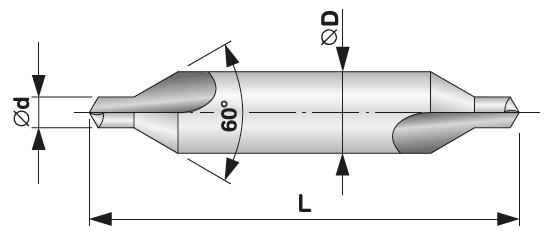

| ∅ d mm |
L mm |
∅ D mm |
| 0,5 | 25,00 | 3,15 |
| 0,8 | 25,00 | 3,15 |
| 1,0 | 31,5 | 3,15 |
| 1,25 | 31,5 | 3,15 |
| 1,6 | 35,5 | 4,00 |
| 2,0 | 40,0 | 5,00 |
| 2,5 | 45,0 | 6,30 |
| 3,15 | 50,0 | 8,00 |
| 4,0 | 56,0 | 10,00 |
| 5,0 | 63,0 | 12,50 |
| 6,3 | 71,0 | 16,00 |
| 8,0 | 80,0 | 20,00 |
| 10,0 | 100,00 | 25,00 |
HSS Co
| ∅ d mm |
L mm |
∅ D mm |
| 0,5 | 25,00 | 3,15 |
| 0,8 | 25,00 | 3,15 |
| 1,0 | 31,5 | 3,15 |
| 1,25 | 31,5 | 3,15 |
| 1,6 | 35,5 | 4,00 |
| 2,0 | 40,0 | 5,00 |
| 2,5 | 45,0 | 6,30 |
| 3,15 | 50,0 | 8,00 |
| 4,0 | 56,0 | 10,00 |
| 5,0 | 63,0 | 12,50 |
| 6,3 | 71,0 | 16,00 |
| 8,0 | 80,0 | 20,00 |
| 10,0 | 100,00 | 25,00 |
