din 8376

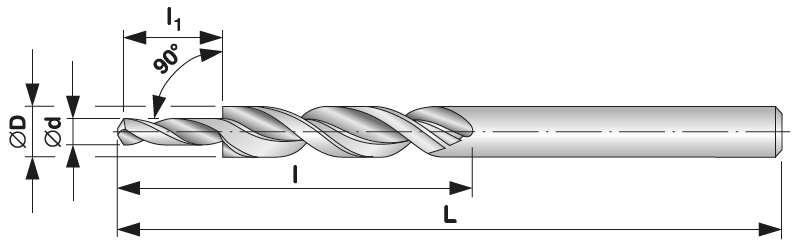

| ∅ D mm |
∅ d mm |
L mm |
I mm |
I1 mm |
Pre závit |
| 6,0 | 3,4 | 93 | 57 | 9 | M3 |
| 8,0 | 4,5 | 117 | 75 | 11 | M4 |
| 10,0 | 5,5 | 133 | 87 | 13 | M5 |
| 11,0 | 6,6 | 142 | 94 | 15 | M6 |
| 15,0 | 9,0 | 169 | 114 | 19 | M8 |
| 18,0 | 11,0 | 191 | 130 | 23 | M10 |
pn 221252
| ∅ D mm |
∅ d mm |
L mm |
I mm |
I1 mm |
Pre závit |
| 8,0 | 4,3 | 117 | 75 | 11 | M4 |
| 10,0 | 5,3 | 133 | 87 | 13 | M5 |
| 11,0 | 6,4 | 142 | 94 | 15 | M6 |
| 15,0 | 8,4 | 169 | 114 | 19 | M8 |
