PN 221155 Vrtáky s kužeľovou stopkou (palcové rozmery)

Značka:

Kategórie: Nástroje, S kužeľovou stopkou, Vrtáky Značka: DIN 345 RN Značka: Stimzet

Popis

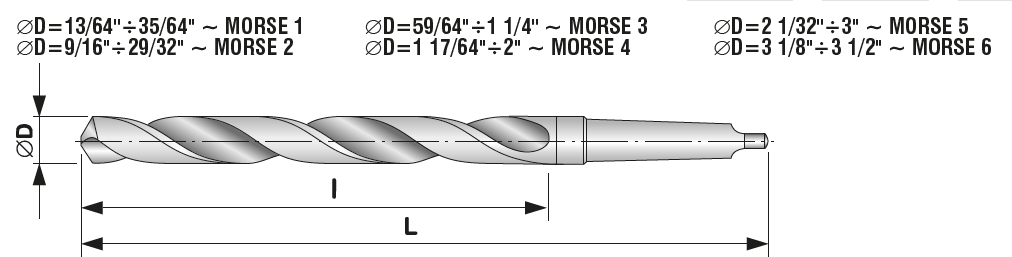

∅ D inch	∅ D mm	L inch	I inch
13/64	5,169	5 1/4	2 1/16
7/32	5,556	5 7/16	2 1/4
15/64	5,953	5 7/16	2 1/4
1/4	6,350	5 11/16	2 1/2
17/64	6,747	5 29/37	2 23/32
9/32	7,144	5 29/32	2 23/32
19/64	7,541	6 1/8	2 15/16
5/16	7,938	6 1/8	2 15/16
21/64	8,335	6 1/8	2 15/16
11/32	8,732	6 3/8	3 3/16
23/64	9,128	6 3/8	3 3/16
3/8	9,525	6 5/8	3 7/16
25/64	9,922	6 5/8	3 7/16
13/32	10,319	6 5/8	3 7/16
27/64	10,716	6 7/8	3 11/16
7/16	11,113	6 7/8	3 11/16
29/64	11,510	6 7/8	3 11/16
15/32	11,907	7 5/32	3 31/32
31/64	12,304	7 5/32	3 31/32
1/2	12,700	7 5/32	3 31/32
33/64	13,097	7 5/32	3 31/32
17/32	13,494	7 7/16	4 1/4
35/64	13,891	7 7/16	4 1/4
9/16	14,288	8 3/8	4 1/2
37/64	14,685	8 3/8	4 1/2
19/32	15,082	8 5/8	4 3/4
39/64	15,479	8 5/8	4 3/4
5/8	15,876	8 5/8	4 3/4
41/64	16,272	8 3/4	4 7/8
21/32	16,669	8 3/4	4 7/8
43/64	17,068	9	5 1/8
11/16	17,463	9	5 1/8
45/64	17,860	9	5 1/8
23/32	18,257	9 1/8	5 1/4
47/64	18,654	9 1/8	5 1/4
3/4	19,051	9 3/8	5 1/2
49/64	19,448	9 3/8	5 1/2
25/32	19,844	9 3/8	5 1/2
51/64	20,241	9 5/8	5 3/4
13/16	20,638	9 5/8	5 3/4
53/64	21,035	9 3/4	5 3/4
27/32	21,432	9 3/4	5 7/8
55/64	21,829	9 3/4	5 7/8
7/8	22,226	9 3/4	5 7/8
57/64	22,623	10	5 1/8
29/32	23,020	10	6 1/8
59/64	23,416	10 7/8	6 1/8
15/16	24,813	11	6 1/4
61/64	24,210	11	6 1/4
31/32	24,607	11	6 1/4
63/64	25,004	11 1/4	6 1/2
1	25,400	11 1/4	6 1/2
1 1/64	25,798	11 1/4	6 1/2
1 1/32	26,195	11 1/4	6 1/2
1 3/64	26,591	11 3/8	6 5/8
1 1/16	26,989	11 3/8	6 5/8
1 5/64	27,385	11 3/8	6 5/8
1 3/32	27,782	11 3/8	6 5/8
1 7/64	28,179	11 5/8	6 7/8
1 1/8	28,576	11 5/8	6 7/8
1 9/64	28,973	11 5/8	6 7/8
1 5/32	29,370	11 5/8	6 7/8
1 11/64	29,767	11 5/8	6 7/8
1 3/16	30,164	11 7/8	7 1/8
30,560	11 7/8	7 1/8	0,940
1 7/32	30,957	11 7/8	7 1/8
31,354	11 7/8	7 1/8	0,974
1 1/4	31,751	12	7 1/4
1 17/64	32,148	13 1/8	7 1/4
1 9/32	32,545	13 1/8	7 1/4
1 19/64	32,942	13 1/8	7 1/4
1 5/16	33,339	13 1/8	7 1/4
1 21/64	33,734	13 3/8	7 1/2
1 11/32	34,133	13 3/8	7 1/2
1 23/64	34,529	13 3/8	7 1/2
1 3/8	34,926	13 3/8	7 1/2
1 25/64	35,323	13 3/8	7 1/2
1 13/32	35,720	13 1/2	7 5/8
1 27/64	36,117	13 1/2	7 5/8
1 7/16	36,514	13 1/2	7 5/8
1 29/32	36,911	13 1/2	7 5/8
1 15/32	37,308	13 1/2	7 5/8
1 31/64	37,705	13 3/4	7 7/8
1 1/2	38,101	13 3/4	7 7/8
1 33/64	38,498	13 3/4	7 7/8
1 17/32	38,895	13 3/4	7 7/8
1 35/64	39,292	13 3/4	7 7/8
1 9/16	39,689	13 3/4	7 7/8
1 37/64	40,086	14	8 1/8
1 19/32	40,483	14	8 1/8
1 39/64	40,880	14	8 1/8
1 5/8	41,227	14	8 1/8
1 41/64	41,673	14	8 1/8
1 21/32	42,070	14	8 1/8
1 43/64	42,467	14	8 1/8
1 11/16	42,864	14 1/8	8 1/4
1 45/64	43,261	14 1/8	8 1/4
1 23/32	43,658	14 1/8	8 1/4
1 47/64	44,055	14 1/8	8 1/4
1 3/4	44,452	14 1/8	8 1/4
1 49/64	44,849	14 1/8	8 1/4
1 25/32	45,245	14 3/8	8 1/2
1 51/64	45,642	14 3/8	8 1/2
1 13/16	46,039	14 3/8	8 1/2
1 53/64	46,436	14 3/8	8 1/2
1 27/32	46,833	14 3/8	8 1/2
1 55/64	47,230	14 3/8	8 1/2
1 7/8	47,628	14 1/2	8 5/8
1 57/64	48,024	14 1/2	8 5/8
1 29/32	48,421	14 1/2	8 5/8
1 59/64	48,871	14 1/2	8 5/8
1 15/16	49,214	14 1/2	8 5/8
1 61/64	49,611	14 1/2	8 5/8
1 31/32	50,008	14 3/4	8 7/8
1 63/64	50,405	14 3/4	8 7/8
2	50,800	14 3/4	8 7/8
2 1/32	51,596	16 1/4	8 7/8
2 1/16	52,387	16 1/4	8 7/8
2 3/32	53,183	16 3/8	9
2 1/8	53,977	16 3/8	9
2 5/32	54,768	16 3/8	9
2 3/16	55,565	16 3/8	9
2 7/32	56,358	16 5/8	9 1/4
2 1/4	57,152	16 5/8	9 1/4
2 9/32	57,946	16 5/8	9 1/4
2 5/16	58,740	16 5/8	9 1/4
2 11/32	59,533	16 5/8	9 1/4
2 3/8	60,327	16 7/8	9 1/2
2 13/32	61,121	16 7/8	9 1/2
2 7/16	61,915	16 7/8	9 1/2
2 15/32	62,708	16 7/8	9 1/2
