LUD – TYP 243812.5
| Priemer | kg | ||
| 85 | M2 | 084020 | 1,60 |
| 100 | M2 | 104020 | 2,75 |
| 125 | M2 | 124020 | 4,85 |
| 160 | M2 | 164020 | 7,32 |
| 200 | M2 | 204020 | 15,42 |
| 250 | M2 | 254020 | 23,80 |
| 315 | M2 | 314020 | 44,50 |
| 350 | M2 | 354020 | 54,10 |
| 400 | M2 | 404020 | 57,50 |
Max.moment M, max. upínacia sala F, max. otáčky n
| Priemer | M (Nm) | F (kN) | n (min-1) |
| 85 | 10 | 20 | 4800 |
| 100 | 15 | 26 | 4200 |
| 125 | 22 | 36 | 3700 |
| 160 | 38 | 46 | 3000 |
| 200 | 54 | 74 | 2300 |
| 250 | 80 | 94 | 1700 |
| 315 | 94 | 126 | 1500 |
| 350 | 94 | 126 | 1300 |
| 400 | 94 | 126 | 1300 |

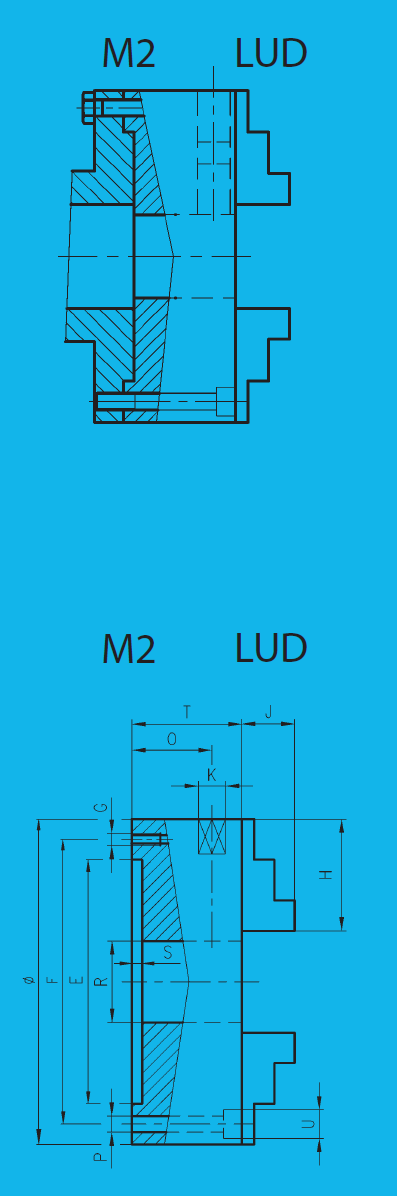

| Priemer | E H7 | F±0,2 | G | H | J | K | O | P | R | S | T | U |
| 85 | 62 | 72 | — | 34 | 17 | 6 | 20 | 4×7 | 25 | 4 | 42 | 11 |
| 100 | 70 | 83 | — | 41 | 17 | 6 | 20 | 4×9 | 25 | 4 | 42 | 15 |
| 125 | 95 | 108 | — | 51 | 19 | 8 | 21 | 4×9 | 28 | 4 | 44 | 15 |
| 160 | 125 | 140 | 4×M10 | 47 | 22 | 8 | 32 | 4×11 | 45 | 4 | 54 | 17 |
| 200 | 125 | 140 | 4×M10 | 75 | 32 | 12 | 44 | 4×11 | 50 | 4 | 72 | 17 |
| 250 | 200 | 224 | 4×M12 | 75 | 32 | 12 | 44 | 4×13 | 60 | 5 | 72 | 20 |
| 315 | 200 | 224 | 4×M12 | 100 | 36 | 14 | 49 | 4×13 | 75 | 5 | 80 | 20 |
| 350 | 260 | 286 | — | 100 | 37 | 14 | 60 | 4×13 | 75 | 5 | 92,5 | 20 |
| 400 | 260 | 286 | — | 100 | 37 | 14 | 60 | 4×13 | 105 | 5 | 92,5 | 20 |
A – DIN 55026; ISO 702/I; ČSN ISO 702/I
B – DIN 55027; ISO 702/III; ČSN ISO 702/III
D – DIN 55029 inch; ISO 702/II inch; ČSN ISO 702/II inch
