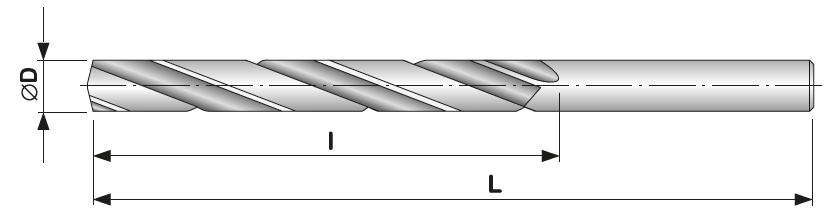

| ∅ D mm |
L mm |
I mm |
 |
| 4,8 | 86 | 52 | 3 |
| 5 | 86 | 52 | 3 |
| 5 H11 | 86 | 52 | 3 |
| 5,80 | 93 | 57 | 3 |
| 6 | 93 | 57 | 3 |
| 6 H11 | 93 | 57 | 3 |
| 6,80 | 109 | 69 | 3 |
| 7 | 109 | 69 | 3 |
| 7 H11 | 109 | 69 | 3 |
| 7,80 | 117 | 75 | 3 |
| 8 | 117 | 75 | 3 |
| 8 H11 | 117 | 75 | 3 |
| 8,80 | 125 | 81 | 3 |
| 9 | 125 | 81 | 3 |
| 9 H11 | 125 | 81 | 3 |
| 9,80 | 133 | 87 | 3 |
| 10 | 133 | 87 | 3 |
| 10 H11 | 133 | 87 | 3 |
| 10,75 | 142 | 94 | 3 |
| 11 | 142 | 94 | 3 |
| 11 H11 | 142 | 94 | 3 |
| 11,75 | 142 | 94 | 3 |
| 12 | 151 | 101 | 3 |
| 12 H11 | 151 | 101 | 3 |
| 12,75 | 151 | 101 | 3 |
| 13 | 151 | 101 | 3 |
| 13 H11 | 151 | 101 | 3 |
| 13,75 | 160 | 108 | 3 |
| 14 | 160 | 108 | 3 |
| 14 H11 | 160 | 108 | 3 |
| 14,75 | 169 | 114 | 3 |
| 15 | 169 | 114 | 3 |
| 15 H11 | 169 | 114 | 3 |
| 15,75 | 178 | 120 | 3 |
| 16 | 178 | 120 | 3 |
| 16 H11 | 178 | 120 | 3 |
